Dunnage Racks/Part #1705

Dunnage Rack – Large Box Dunnage Rack

$2,215.56 USD

Available to Order

⅛" aluminum box construction.
Over 99" wide and 29" deep for oversized storage capacity.
Pad-lockable doors on each end for quick access and theft deterrence.
Mounts to trailer cross members or main beams with included angle brackets.
Ideal for pipe stakes, lumber, and bulk storage.
Built for flatbeds, step decks, and custom haulers needing max storage

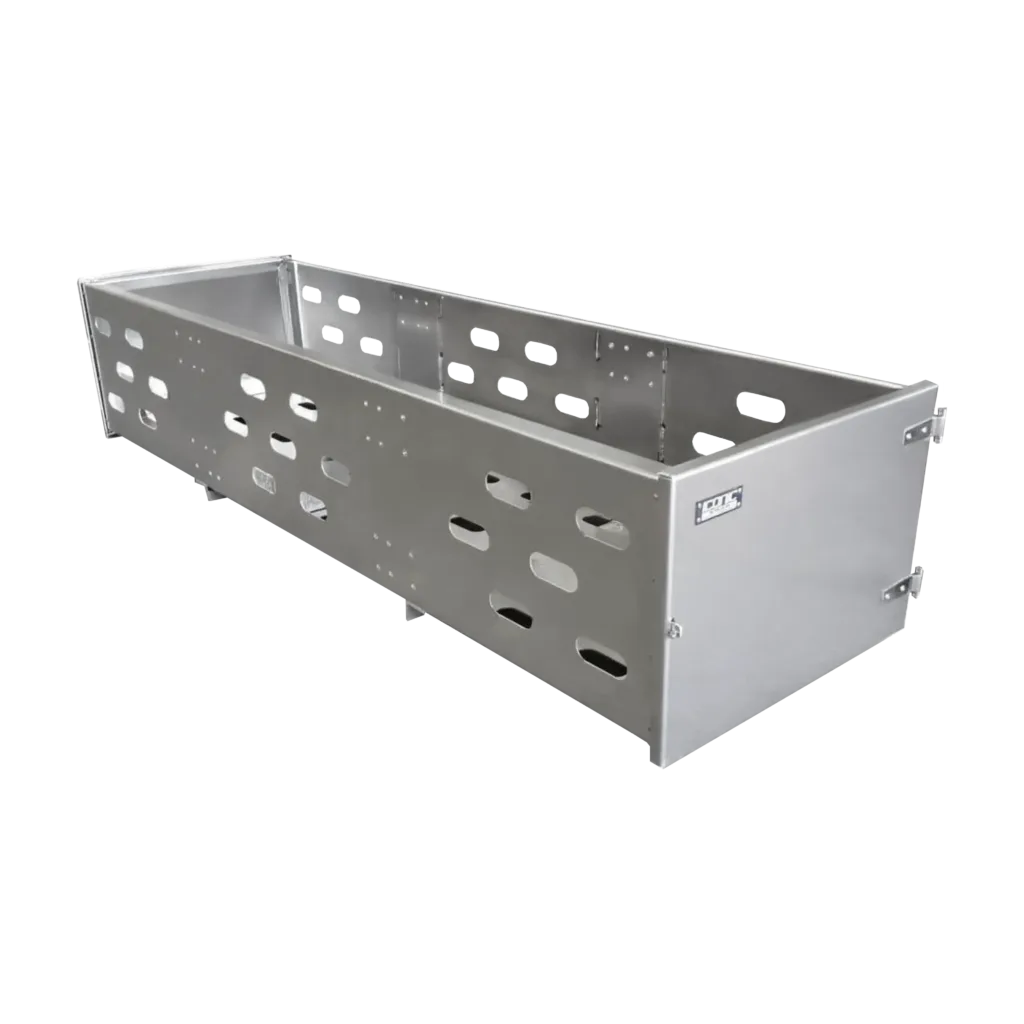

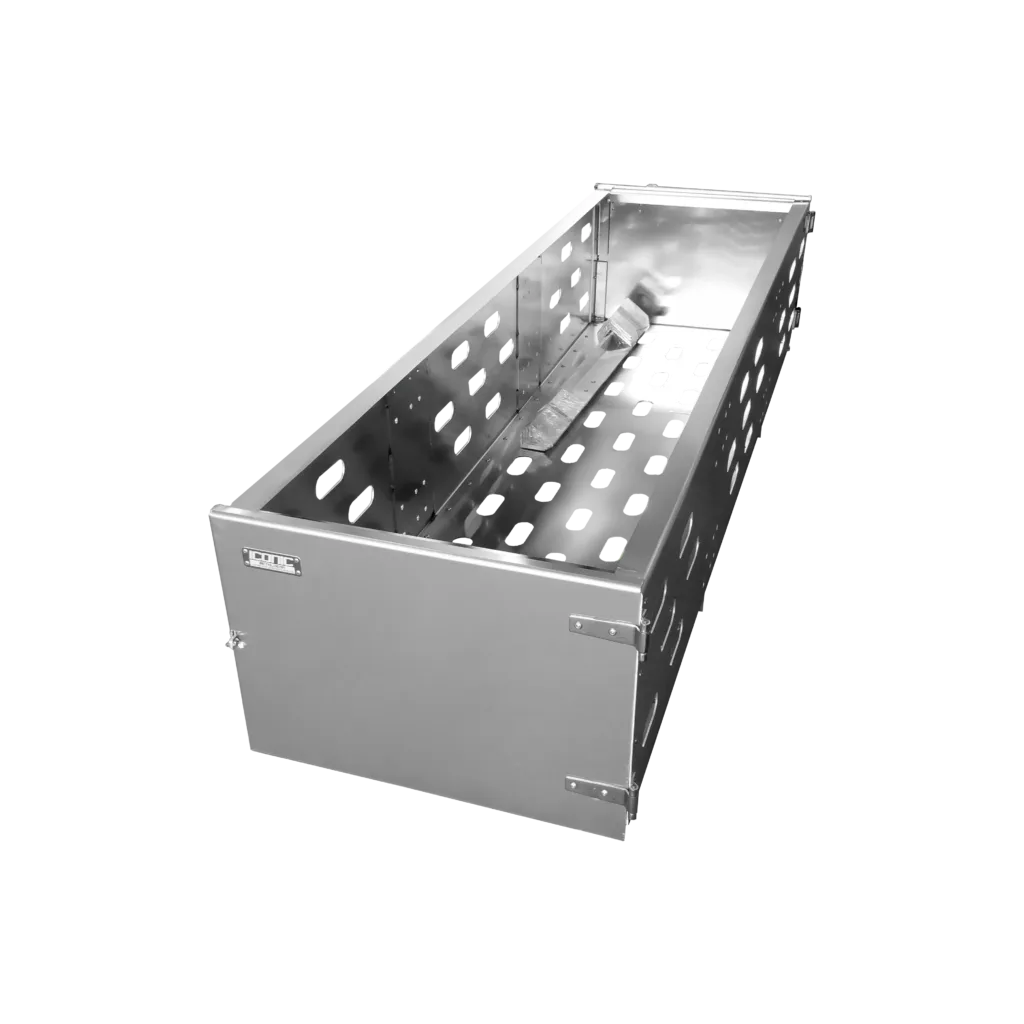

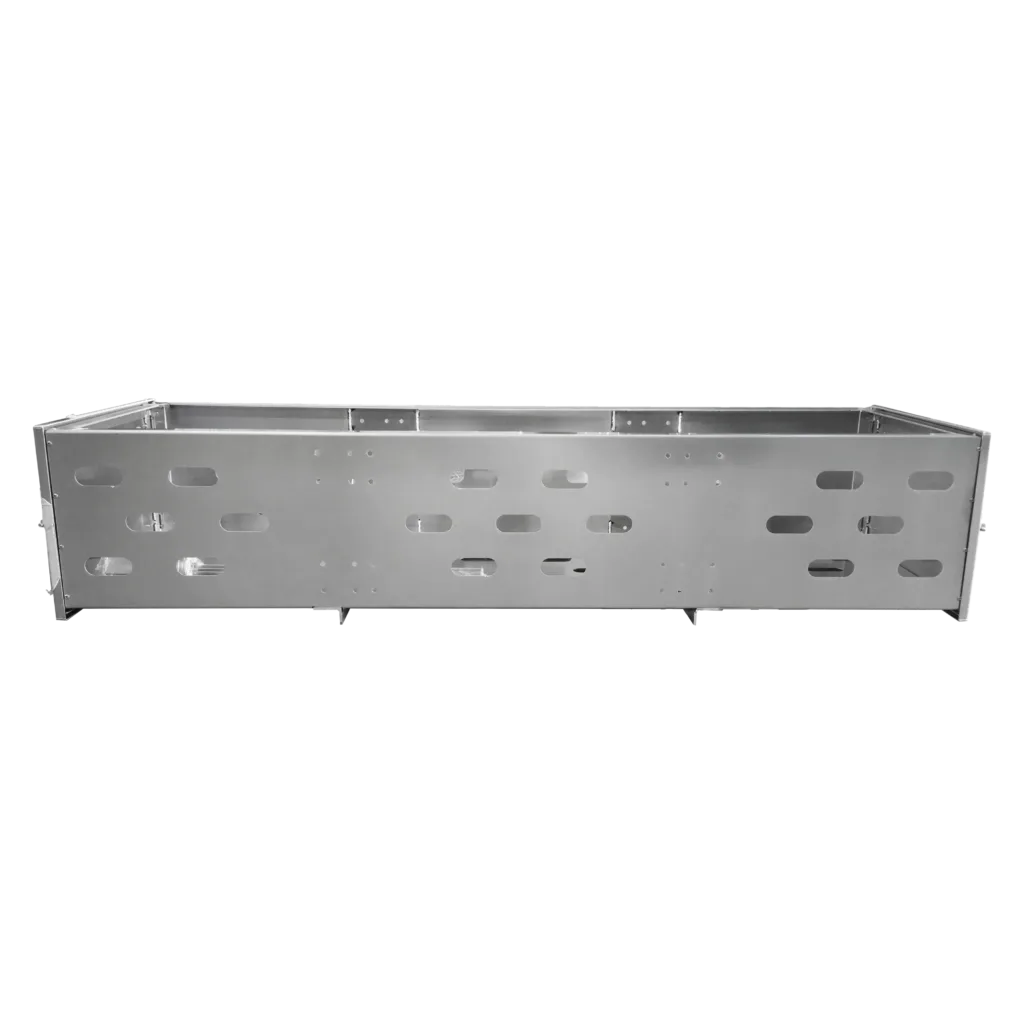

Big gear needs big storage. The Box-Style Dunnage Holder gives you over 99" of width and 29" of depth—plenty of room for pipe stakes, lumber, or just about anything else you haul that won't fit in a standard rack. Built from strong, lightweight ⅛" aluminum, this open-top box mounts directly to your trailer's main beams or cross members using the included angle brackets. Lockable end doors make it easy to load long or bulky gear from either side. Whether you're running solo or managing a fleet, this is serious storage that's ready for work.

Specs: Part #1705

99.25" Width

19.125" Height

33.25" Depth

148.53 lbs Weight

Drawings

Photos & Videos

On the Road

Built for the Real World

Over 99" wide and 29" deep gives you room for long stakes, lumber, and more. Aluminum construction for strength without excessive weight.

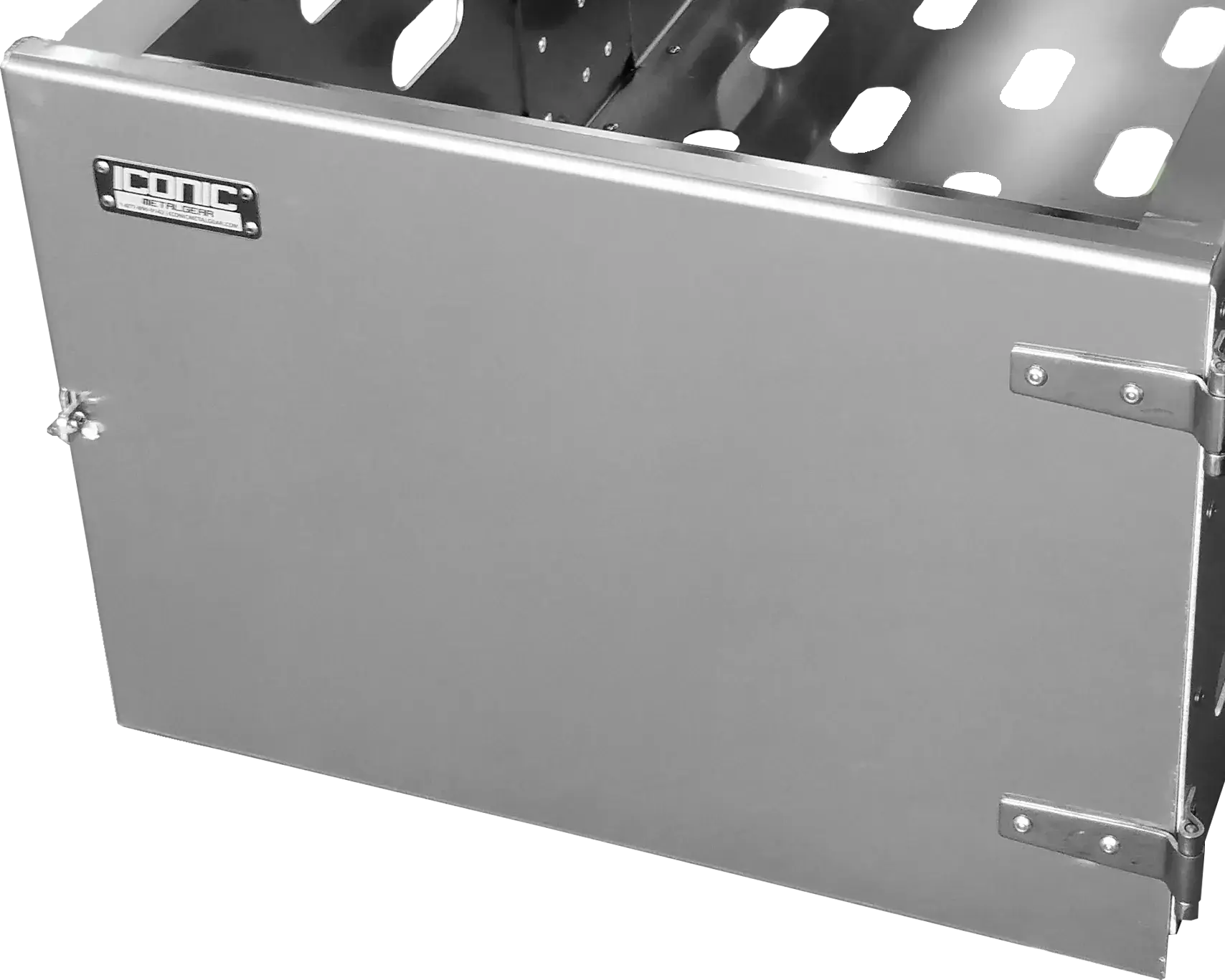

Dual-end access, Lockable doors

Open and access from either end and keep your cargo secure. Saves time, boosts safety, and makes organization easier while on the road.

Easy Under-trailer Mounting

Includes angle brackets to bolt through cross members or main beams. Secure it your way, right where you need it.

LEFT UNANSWERED?

FREQUENTLY ASKED QUESTIONS

Find quick answers to the most common questions we receive. If you're still unsure, feel free to reach out to our support team.

No. The Box Dunnage racks include the mounting angles for installation, but hardware is not included.

With the provided mounting angle, Dunnage Racks should be drilled and bolted through the main beam and crossmembers. Instructions for mounting are included with each Box Dunnage Rack or can be requested from an Iconic MetalGear sales representative.
